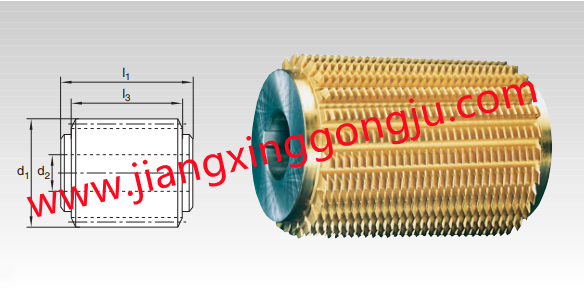

Hobs for spur and helical gears
For economical production on modern gear hobbing machines
for spur and helical gears to module pitch; 20° pressure angle
basic profile II to DIN 3972
quality grade A to DIN 3968
single start right-handed, with keyway

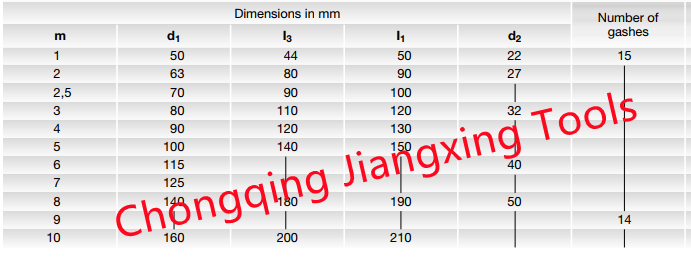

Common sizes of solid hobs for spur and helical gears as following: m1-m10 with PA20
Chongqing Jiangxing Tools is designing and manufacturing complicated gear hobbing tools such as gear hob, involute spline hob, roller chain sprocket hob, timing pulley hob, parallel side spline hob, worm gear hob, carbide hob and made in up-to-dated facility with long experience.
