Standard Gear Hob with Basic Profile DIN 3972-Ⅱ
2021-10-23 09:46:22
jiangxingTools
4430

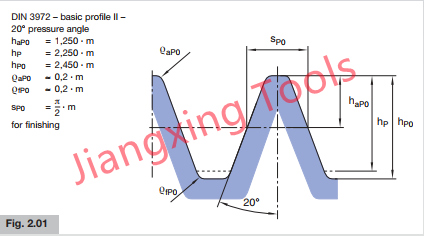

Standard Gear Hob with Basic Profile DIN 3972-Ⅱ
Module: m0.5-m22, DP, pressure angle: PA20°
solid gear hob for finishing cut of spur and helical gears
quality grade A to DIN 3968
We are designing and producing module standard gear hob, spline hob, worm wheel hob, timing pulley hob and carbide hobs, which are either custom-made or to suit international standards. Please contact us for more details or quotes on these precision gear hobbing tools.
